Sheet Metal Fabrication · Vietnam

Sheet Metal Fabrication
Vietnam — Laser Cut,
Bent & Welded in HCMC.

Laser cutting, CNC press brake bending, MIG/TIG welding, and complete surface finishing — 0.5–12mm thickness, ISO 9001:2015, 100% CMM inspection. Lead time 5–10 business days.

Vietnamese-origin fabrication. Section 301 tariff exposure: 0%. CO Form B issued with every shipment.

Request a Technical Quote →
Talk to an Engineer →
ISO 9001:2015 · 100% FAI · CMM Report Every Order
Factory Image
By The Numbers

ISO 9001:2015 certified · 100% FAI on every order · Mitutoyo CMM inspection

0.5–12mmThickness Range
±0.1mmLaser Cut Tolerance
5–10 DaysStandard Lead Time
98.4%On-Time Delivery

Sheet Metal Services

Fiber laser cutting sheet metal Vietnam — VNcontX HCMC Bình Chánh

Cutting

Laser cutting (fiber), plasma, CNC turret punching, shearing, waterjet. Kerf tolerance ±0.1mm.

CNC press brake bending sheet metal Vietnam — VNcontX fabrication

Forming

CNC press brake bending ±0.5°, stamping, rolling, custom form dies. Flat-pattern DFM review included.

MIG TIG welding sheet metal assembly Vietnam — VNcontX

Welding & Assembly

MIG, TIG, spot, robotic welding. PEM hardware insertion. Full sheet metal assemblies quoted as single line item.

Powder coating anodizing passivation sheet metal finishing Vietnam

Finishing

Powder coat (full RAL), anodizing Type II/III, passivation, zinc plating, electropolishing, media blasting.

→ Sheet metal fabrication for prototyping and low-volume production
Material Library

Sheet Metal Materials

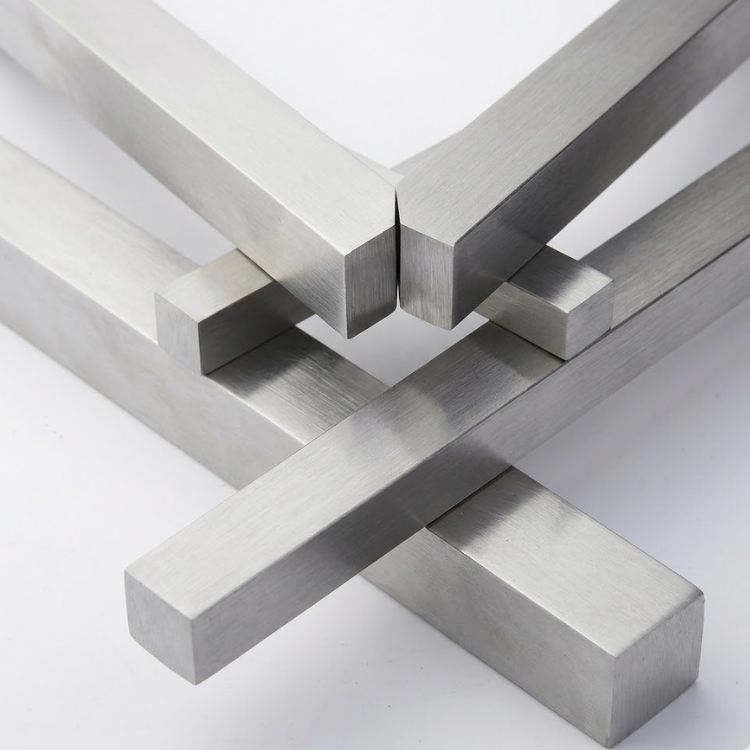

Aluminum sheet metal fabrication Vietnam — 5052-H32 6061-T6 laser cutting bending | VNcontX HCMC
AluminumAL

Lightweight with a high strength-to-weight ratio. Excellent corrosion resistance and good malleability — suited for enclosures, brackets, and formed panels requiring weight reduction without sacrificing durability.

Lead Time
As fast as 2 Days
Finishing
Chem Film · Anodizing · Electroless Nickel · Media Blasting · Nickel Plating · Powder Coating · Tumbling
Available Alloys
3003-H14 — Very good formability; ideal for complex bends and cosmetic parts
5052-H32 — Preferred grade; excellent formability, corrosion resistance, and weldability
6061-T6 — Higher strength; best suited for simple bends and structural use

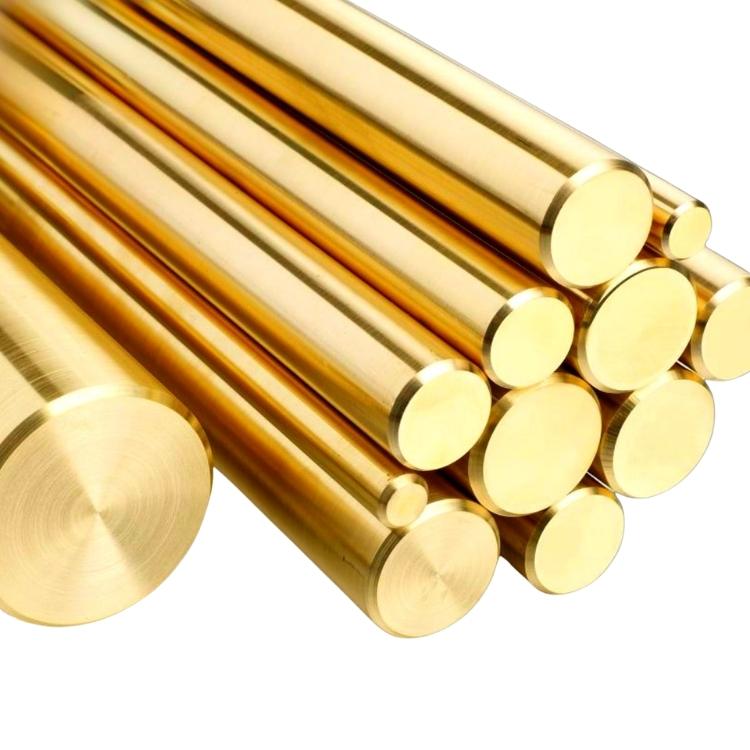

Brass sheet metal fabrication Vietnam — C260 C360 laser cutting forming | VNcontX HCMC
BrassCU-ZN

Copper-zinc alloy with excellent machinability, good corrosion resistance, and an attractive gold-tone finish. Well suited for decorative hardware, electrical connectors, and precision components.

Lead Time
As fast as 3 Days
Finishing
Electropolishing · Gold Plating · Nickel Plating · Powder Coating · Media Blasting · Tumbling
Available Alloys
C260 (Cartridge Brass) — Excellent cold working; ideal for deep drawing and complex forming
C360 (Free-Cutting Brass) — Best machinability; suited for precision machined parts
C464 (Naval Brass) — Good corrosion resistance in marine environments

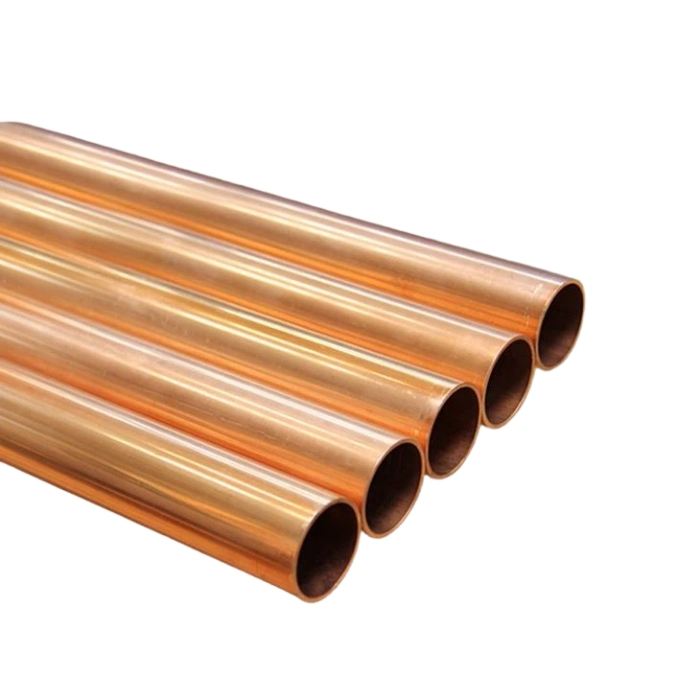

Bronze sheet metal forming Vietnam — C510 phosphor bronze C630 fabrication | VNcontX
BronzeCU-SN

Copper-tin alloy with exceptional wear resistance, low friction, and strong corrosion resistance in saltwater environments. Suited for bushings, bearings, and structural components requiring long service life.

Lead Time
As fast as 4 Days
Finishing
Media Blasting · Tumbling · Nickel Plating · Powder Coating · Patina Finishing
Available Alloys
C510 (Phosphor Bronze) — High strength and fatigue resistance; ideal for springs and clips
C544 (Phosphor Bronze) — Good formability with enhanced wear resistance
C630 (Aluminum Bronze) — Superior corrosion resistance; suited for marine and industrial use

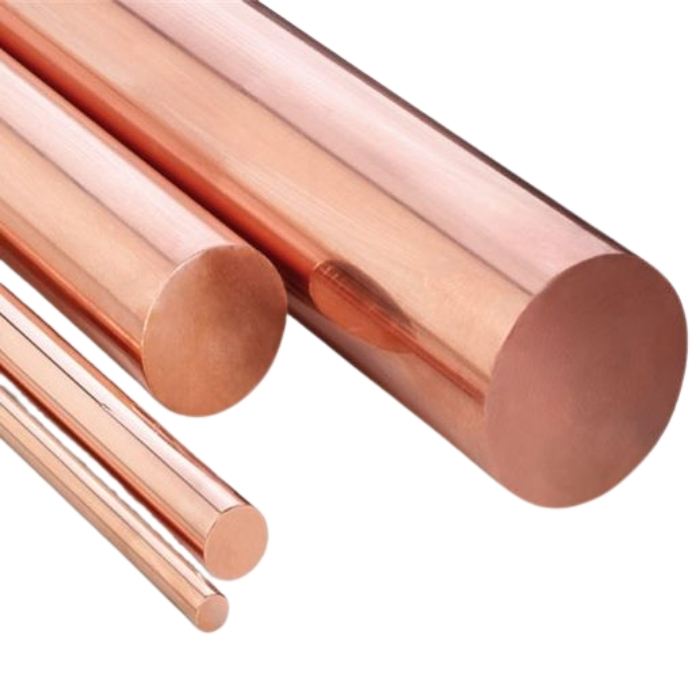

Copper sheet metal fabrication Vietnam — C110 C101 laser cutting welding | VNcontX HCMC
CopperCU

Among the highest electrically and thermally conductive metals available. Highly malleable and ductile. Natural antimicrobial properties make it preferred for medical and food processing environments.

Lead Time
As fast as 3 Days
Finishing
Electropolishing · Tin Plating · Silver Plating · Nickel Plating · Media Blasting · Tumbling
Available Alloys
C101 (Oxygen-Free) — Highest electrical conductivity; ideal for electrical components
C110 (Electrolytic) — Standard grade; excellent conductivity and formability
C122 (DHP Copper) — Good weldability; suitable for plumbing and HVAC

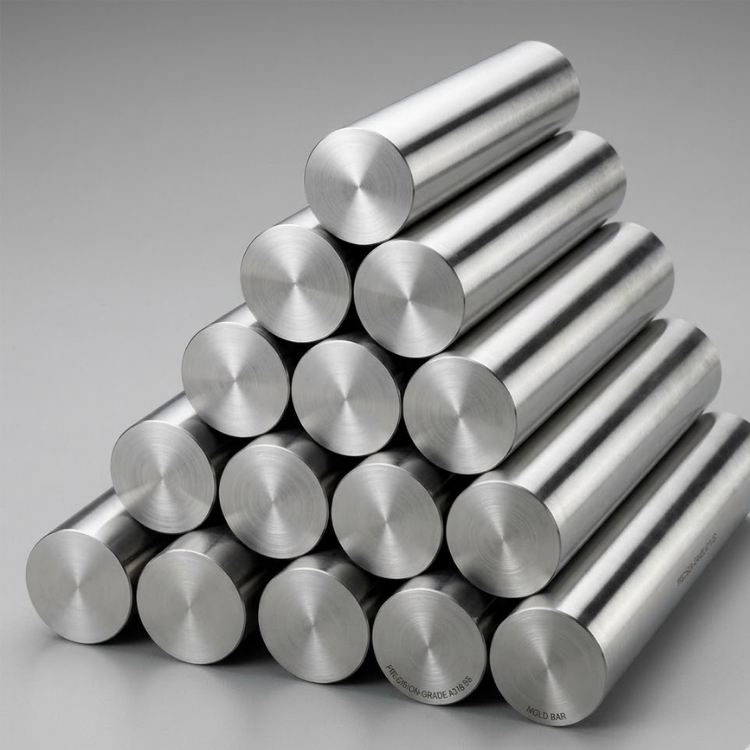

Stainless steel sheet metal fabrication Vietnam — 304 316 laser cutting bending | VNcontX HCMC
Stainless SteelSS

Iron-based alloy with chromium for outstanding corrosion resistance and a clean finish. Maintains strength at high temperatures. Standard for food processing equipment, medical devices, and architectural panels.

Lead Time
As fast as 2 Days
Finishing
Electropolishing · Passivation · Media Blasting · Brushed Finish · Powder Coating · Tumbling
Available Alloys
304 — Most common grade; excellent corrosion resistance and weldability for general use
316 — Enhanced molybdenum; superior resistance to chlorides and acids
410 — Martensitic grade; higher hardness for wear-resistant applications

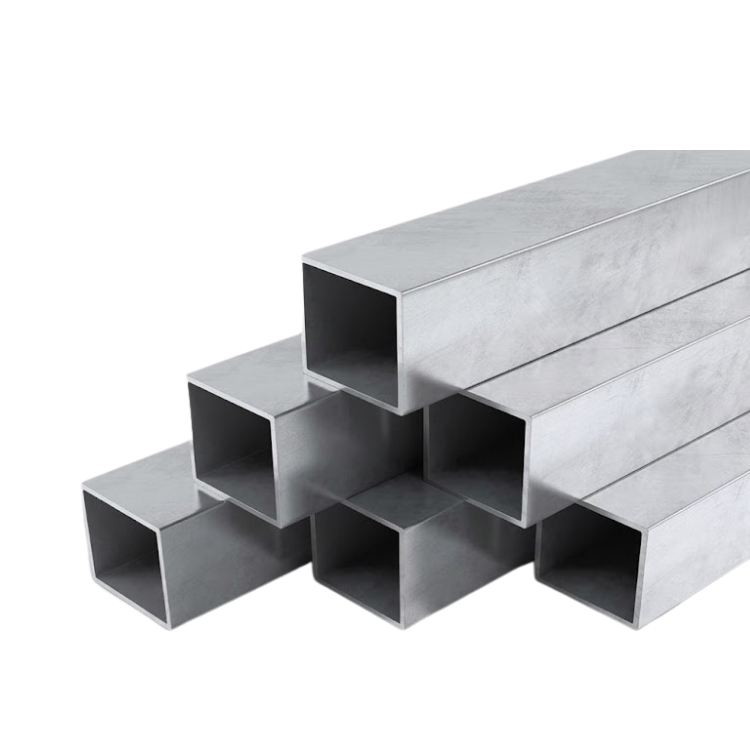

Steel sheet metal fabrication Vietnam — cold rolled 1018 A36 bending welding | VNcontX HCMC
SteelCS

Most cost-effective sheet metal material. High strength, good weldability, excellent machinability. Go-to choice for structural parts, frames, brackets, and enclosures. Requires protective coating to prevent oxidation.

Lead Time
As fast as 2 Days
Finishing
Powder Coating · E-Coat · Zinc Plating · Paint · Media Blasting · Black Oxide · Tumbling
Available Alloys
1008/1010 (Cold Rolled) — Excellent surface finish and formability; ideal for cosmetic parts
1018 (Cold Rolled) — Good balance of strength and machinability for structural components
A36 (Hot Rolled) — Cost-effective choice for heavy structural applications

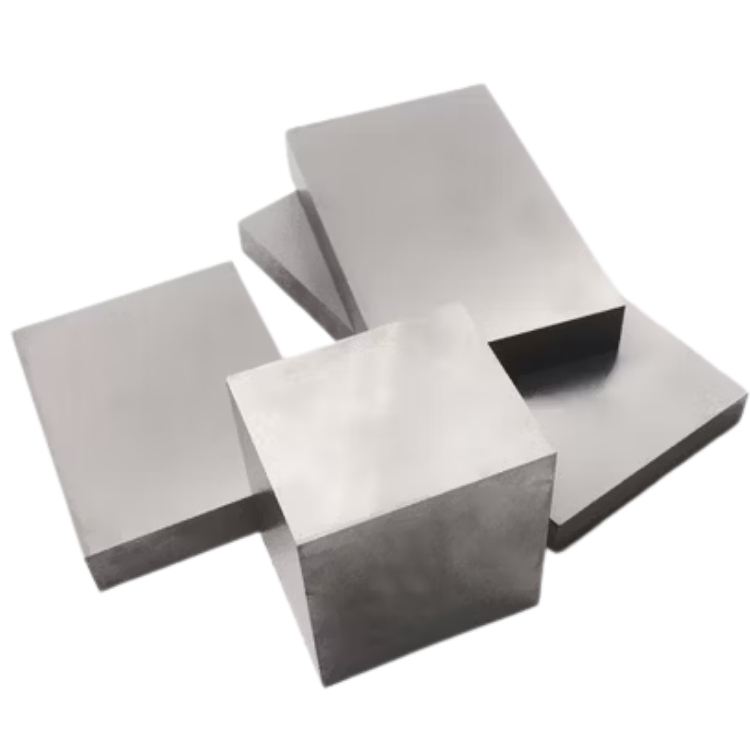

Titanium sheet metal fabrication Vietnam — Grade 2 Grade 5 Ti-6Al-4V laser cutting | VNcontX
TitaniumTI

Premium engineering material with an exceptional strength-to-weight ratio, biocompatibility, and superior corrosion resistance in aggressive environments. Material of choice for aerospace, medical implants, and high-performance applications.

Lead Time
As fast as 5 Days
Finishing
Anodizing · Media Blasting · Electropolishing · Passivation · Tumbling
Available Alloys
Grade 1 — Commercially pure; highest ductility and excellent corrosion resistance for forming
Grade 2 — Most widely used pure titanium; good balance of strength and formability
Grade 5 (Ti-6Al-4V) — Highest-strength titanium alloy; preferred for aerospace and medical
Industries Served

Sheet Metal Fabrication for B2B Industries

From electronics enclosures to medical-grade assemblies — same ISO 9001:2015 process, same CMM report, regardless of industry or order size.

⚡
Electronics & Industrial Equipment
PCB bracketsEquipment enclosuresControl panelsCable management traysChassis frames
Cold-rolled steel and 5052 aluminum. Powder coat or chem film. Hole patterns held to ±0.15mm positional tolerance.
☀️
Renewable Energy & Solar
Solar mounting bracketsInverter housingsRail extrusion framesJunction box coversTracker arm assemblies
6061-T6 aluminum and galvanized steel. Anodizing Type II or powder coat for outdoor exposure. AANZFTA covers AU-bound shipments.
🏥
Medical & Laboratory Equipment
Instrument chassisStainless enclosuresImaging equipment framesLab cart structuresClean-room panels
316 stainless with electropolishing or passivation (ASTM A967). Full material traceability — mill cert and heat lot retained per batch.
🚗
Automotive & EV Components
Battery tray bracketsThermal management platesStructural reinforcementsSensor mounting platesWiring harness brackets
4140 steel and 7075-T6 aluminum for high-load applications. Weld inspection per AWS D1.1. FAI report with Cpk data on critical dims.
🏭
Food Processing & Packaging
Conveyor framesHopper assembliesSanitary guard panelsMachine covers304 SS structural parts
304 and 316L stainless standard. Electropolishing for Ra ≤0.4μm surface finish. No crevice welds — continuous TIG bead on food-contact joints.
✈️
Aerospace & Defense Support
Ground support bracketsAvionics enclosuresAntenna mountsTest fixture panelsStructural brackets
Titanium Grade 2/5 and 7075-T6 aluminum available. ±0.05mm precision laser cut. Full dimensional PDF report on 100% of parts — no sampling.
How It Works

From DXF to Finished Part — 6 Steps

Every sheet metal fabrication order at VNcontX follows the same Zero-Defect Protocol. No step is skipped, regardless of order size.

Step 01
📄
Drawing Review & DFM

STEP / DXF reviewed for bend radius, flange length, hole sizing, and K-factor. DFM feedback issued within 4 hours. No material cut until drawing is locked.

Step 02
🪨
Material Procurement

Mill-certified sheet stock sourced to spec — alloy, temper, and thickness confirmed against PO. Heat/lot number logged for traceability.

Step 03
⚡
Laser Cutting

Fiber laser programmed from approved DXF. Cut profiles held to ±0.1mm. First-off piece measured before batch production continues.

Step 04
🔧
Forming & Welding

CNC press brake bending to ±0.5° angular tolerance. MIG/TIG welding and PEM hardware insertion completed in-house on the same program.

Step 05
🔬
CMM Inspection & FAI

100% first-article inspection on Mitutoyo CMM. Full dimensional report generated — PDF issued before shipment on every order, no exceptions.

Step 06
📦
Finishing & Export

Surface finishing applied per spec. ISPM-15 export crating, CO Form B, commercial invoice prepared. Air freight to LAX or Sydney: 2–3 days.

Prototypes ship in 3–5 days. Standard production runs with finishing: 5–10 business days from drawing approval. Expedited slots available — contact duc.nguyen@vncontx.com for schedule availability.

Why VNcontX

What You Get on Every Order

From prototype to production run — same quality process, same CMM report, no exceptions.

Sheet Metal · ISO 9001:2015 · 5–10 Day Lead Time
DFM review before cutting — flat-pattern check, bend allowance, min-radius flag. No surprises after material is cut.
±0.1mm laser cut tolerance — ±0.5° bending. Mitutoyo CMM measurement on every FAI.
Material traceability — mill certificate (CO/CQ) retained per batch. Heat/lot traceable on request.
Single-vendor assembly — cut, bend, weld, hardware insert, finish under one roof. One PO, one contact.
Export-ready packing — ISPM-15 crating, CO Form B, commercial invoice. 98.4% OTD.
98.4% On-Time Delivery Measured across all sheet metal orders. Expedited air freight available when schedule is critical.
100% FAI on Every Order First-article inspection with Mitutoyo CMM. Full dimensional PDF report issued before parts leave the facility.
Cpk ≥1.67 Process Capability Target ISO 9001:2015 certified. PDCA improvement cycle on every non-conformance. Zero-Defect Protocol on all critical dimensions.
Surface Finishing

Surface Finishing Options

Applicable materials, available colors & compatible post-processes

Name / MaterialsColorsCan Be Applied With
Chem FilmAluminumClearGoldMedia BlastingTumblingType II Anodizing*Type III Anodizing*Type III + PTFE*
AnodizingAluminumClearBlackGreyRedBlueGoldMedia BlastingTumblingChem Film*
Black OxideSteel, Stainless SteelBlackMedia BlastingTumblingPassivation
Electroless Nickel PlatingAluminum, Steel, Stainless Steel—Media BlastingTumbling
ElectropolishingSteel, Stainless Steel——
Media BlastingAluminum, Steel, Stainless Steel, Brass, Bronze, Copper—All except Electropolish & Powdercoat
Nickel PlatingAluminum, Steel, Stainless Steel—Media BlastingTumbling
PassivationSteel, Stainless Steel—Black OxideElectroless Nickel PlatingZinc PlatingTumblingMedia Blasting
Powder CoatingAluminum, Steel, Stainless SteelFull RAL & Pantone matching—
TumblingAluminum, Steel, Stainless Steel, Brass, Bronze, Copper—All except Electropolish & Powdercoat
Zinc PlatingSteel, Stainless SteelClear (light blue)Black (glossy)Media BlastingTumblingPassivation
Chem FilmAluminum
Colors
ClearGold
Can Be Applied With
Media BlastingTumblingType II Anodizing*Type III Anodizing*Type III + PTFE*
AnodizingAluminum
Colors
ClearBlackGreyRedBlueGold
Can Be Applied With
Media BlastingTumblingChem Film*
Black OxideSteel, Stainless Steel
Colors
Black
Can Be Applied With
Media BlastingTumblingPassivation
Electroless Nickel PlatingAluminum, Steel, Stainless Steel
Colors
—
Can Be Applied With
Media BlastingTumbling
ElectropolishingSteel, Stainless Steel
Colors
—
Can Be Applied With
—
Media BlastingAluminum, Steel, Stainless Steel, Brass, Bronze, Copper
Colors
—
Can Be Applied With
All except Electropolish & Powdercoat
Nickel PlatingAluminum, Steel, Stainless Steel
Colors
—
Can Be Applied With
Media BlastingTumbling
PassivationSteel, Stainless Steel
Colors
—
Can Be Applied With
Black OxideElectroless Nickel PlatingZinc PlatingTumblingMedia Blasting
Powder CoatingAluminum, Steel, Stainless Steel
Colors
Full RAL & Pantone matching
Can Be Applied With
—
TumblingAluminum, Steel, Stainless Steel, Brass, Bronze, Copper
Colors
—
Can Be Applied With
All except Electropolish & Powdercoat
Zinc PlatingSteel, Stainless Steel
Colors
Clear (light blue)Black (glossy)
Can Be Applied With
Media BlastingTumblingPassivation
Cost Advantage

Vietnam vs. China: Landed Cost for Sheet Metal Parts

Fabricated sheet metal parts from China are classified under HTS Chapter 73 — most categories carry a 25% Section 301 tariff surcharge on entry into the US. Structural components and assemblies in some categories have seen rates up to 145%. Vietnamese-origin parts are not subject to Section 301. Certificate of Origin (CO Form B) issues with every shipment.

On a typical enclosure bracket order — 304 stainless, laser cut and bent, powder coated — landed cost from Vietnam runs 30–40% below equivalent Chinese supply after accounting for tariff differential and comparable freight rates. EVFTA covers EU-bound shipments with reduced or zero duty. AANZFTA covers Australian buyers with preferential tariff rates.

Cat Lai Port is 20km from our facility. Tan Son Nhat Airport is 25km. Air freight to LAX or SFO: 2–3 days. Sea freight to US West Coast: 18–22 days. Sea to Sydney or Melbourne: 10–14 days.

Tariff Exposure — US Imports
Vietnam origin0% Section 301
China origin25–145% surcharge
Landed cost delta30–40% lower
Air freight to LAX2–3 days
Sea to West Coast18–22 days
Sea to Sydney / Melbourne10–14 days
EVFTA (EU)Reduced / zero duty
CO Form BEvery shipment
Technical Specifications

Sheet Metal Fabrication Capabilities

Laser Cutting
TechnologyFiber laser, plasma, waterjet
Thickness range0.5–25mm (material dependent)
Cut tolerance±0.1mm standard / ±0.05mm precision
Hole position±0.15mm hole-to-hole
Min hole diameter= material thickness
Max sheet size3000 × 1500mm
CNC Press Brake Bending
Angular tolerance±0.5° standard / ±0.3° precision
Min flange length3× material thickness
Default bend radius= material thickness
Max bend length3200mm
K-factorStated per material + thickness
Welding & Assembly
ProcessesMIG · TIG · Spot · Robotic
MaterialsSteel · SS · Aluminum · Copper · Brass
Hardware insertPEM nuts, standoffs, clinch studs
Weld inspectionVisual + dimensional per AWS D1.1
Post-weldGrinding, passivation, powder coat
Quality & Inspection
CMM equipmentMitutoyo — 100% FAI measurement
FAI reportIssued with every order
CertificationISO 9001:2015
On-time delivery98.4%
Color approvalRAL / Pantone first-article sample
FAQ

Sheet Metal Fabrication — Common Questions

What sheet metal thickness range do you handle?
We process sheet metal from 0.5mm to 12mm depending on material and process. Aluminum (5052-H32, 6061-T6) and cold-rolled steel cover the full range. Stainless 316 is available from 0.8mm upward. For thicknesses outside this range, contact us at duc.nguyen@vncontx.com — we evaluate on a per-job basis with our tooling partners.
What tolerance can you hold on laser-cut and bent parts?
Laser cutting: ±0.1mm on cut profile standard, ±0.05mm on precision runs. CNC press brake bending: ±0.5° angular tolerance standard, ±0.3° on precision setups. Hole-to-hole positional tolerance: ±0.15mm. All FAI parts are measured on Mitutoyo CMM and the report is issued before shipment.
What is the minimum order quantity for sheet metal fabrication?
No minimum order quantity. We run single-piece prototypes through to production batches of 10,000+ parts under the same ISO 9001:2015 quality system. Prototype pricing applies to 1–10 pieces; production pricing kicks in from 11 pieces onward. For sheet metal prototyping with tight schedules, 3–5 day turnaround is available on most standard materials.
Do you quote complete sheet metal assemblies with welding and hardware?
Yes. Send your assembly drawing and BOM — we quote laser cutting, bending, MIG/TIG welding, PEM hardware insertion, and surface finishing as a single line item. One PO, one contact, one shipment. Post-weld operations (grinding, passivation, powder coat) are included in the assembly quote.
What is the lead time for sheet metal fabrication?
Standard lead time is 5–10 business days from drawing approval. Prototypes (1–10 pieces, no finishing) can ship in 3–5 days. Production runs with powder coating or plating add 2–3 days for finishing. Air freight from HCMC to US West Coast or Sydney is 2–3 days on top of production time.
Are there Section 301 tariffs on sheet metal parts from Vietnam?
No. Vietnamese-origin sheet metal fabrication is not subject to US Section 301 tariffs. Chinese-origin fabricated metal parts currently carry 25–145% additional duty depending on HTS classification. Vietnam-manufactured parts ship under standard MFN rates. Certificate of Origin (CO Form B) is issued with every shipment.
Can you match a Pantone or RAL color for powder coating?
Yes. We match to the full RAL Classic and RAL Design system, and to Pantone references for powder coat on steel, aluminum, and stainless steel. Provide your RAL or Pantone code on the drawing or PO. First-article color approval samples are available on request before production run.
What file formats do you accept for sheet metal quotes?
STEP and DXF are preferred for CNC laser cutting and bending programs. SolidWorks (.SLDPRT), IGES, and PDF drawings with flat-pattern dimensions are also accepted. For bent parts, include bend allowance tables or K-factor specification if you have them — otherwise our DFM team will confirm assumptions before cutting. Email files to duc.nguyen@vncontx.com or use the quote form.
Get Started

Ready to Quote Your Sheet Metal Parts?

Send your STEP or DXF files. DFM review included. CMM report on every order. Quotes returned within 24 hours.

Request a Technical Quote →
Talk to an Engineer →

Or email directly: duc.nguyen@vncontx.com  ·
